$349.99 – $559.99
This do it yourself aluminum wagon starter kit makes it possible to find the wagon that meets ALL of your needs and expectations. This kit provides you with all the essential components to build the wagon that you’ve always wanted for the exact use you need the wagon for.
The kit comes complete with all commercial-grade heavy-duty aluminum components and hardware necessary to get you rolling!
Unlimited uses include sporting events & equipment, audio & visual, yard & garden, farm & equestrian, industrial & commercial use, marine, camping… Simply choose the wagon deck component and deck style of your choice and you’re ready to hit the road!
Let your imagination run wild by creating your own beach or fishing wagon with this aluminum wagon starter kit. This kit includes everything you need to build the beach and fishing wagon you’ve always wanted! Kit includes:

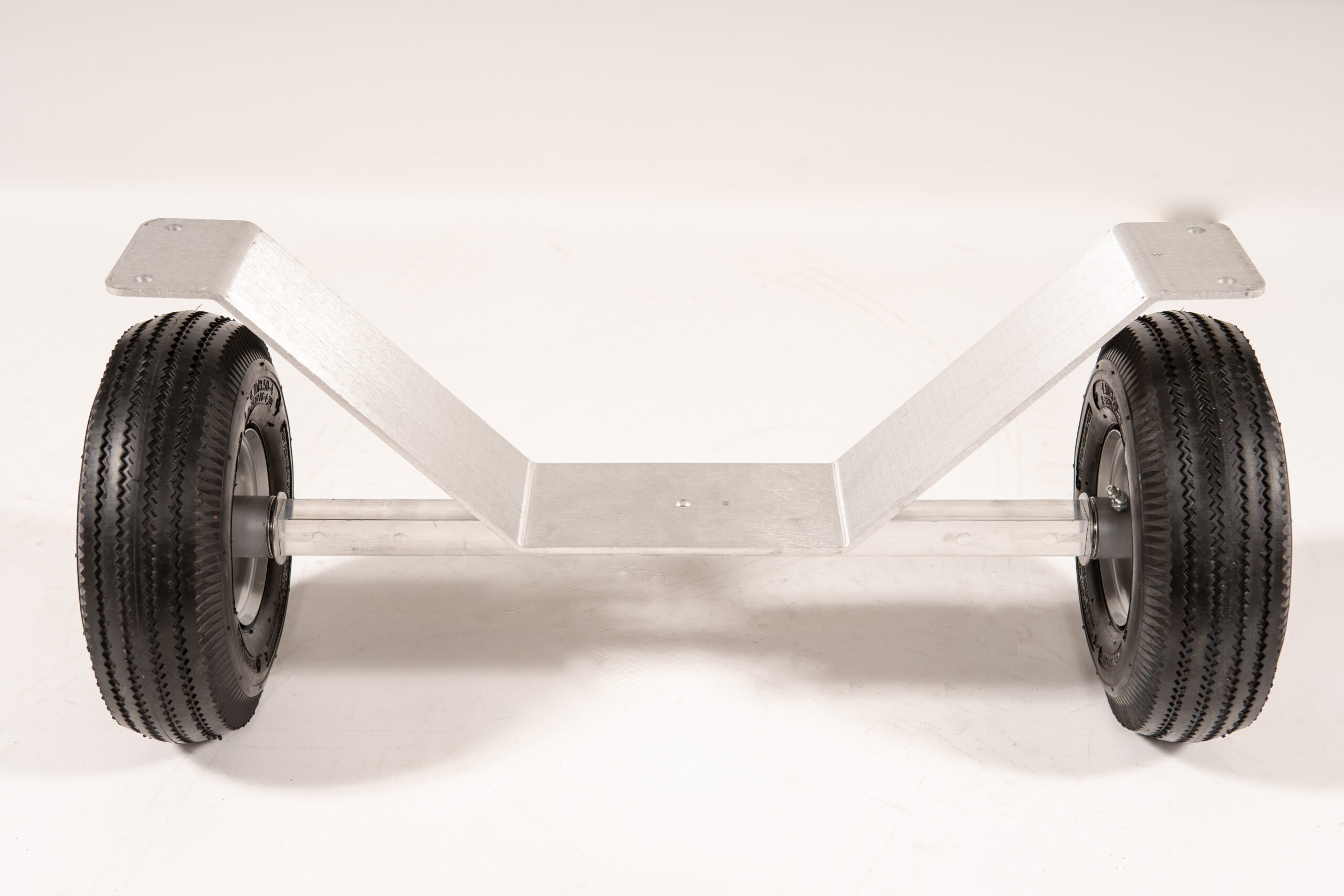

Two Heavy Duty 3/16″ thick aluminum undercarriages with two pre-drilled 3/8″ holes on each end to bolt to the wagon bed of your choosing. Undercarriages are 26″ wide. Front undercarriage includes wagon turning assembly with pre-assembled 3/4″ solid aluminum axles. The Rear undercarriage comes with axle tubing welded directly to the undercarriage with a 3/4″ aluminum axle.
Your choice of balloon beach/sand wheels or turf wheels:
Aluminum “T” Handle. 36″ aluminum “T” handle is made from 1/8″ commercial grade square aluminum tubing with a 1/8″ round aluminum grip handle. Also comes with a slight bend at the bottom so the handle rests leaning on your wagon bed versus laying on the ground waiting to be tripped over.
Stainless steel hardware included: (1) 1/4″ x 2″ hex head cap screw with washers and nylon insert lock nut for attaching the handle to the turning assembly. (4) 3/4″ flat washers for tires. (4) Quick-release lynchpins for holding your tires on the axles.
This is the perfect aluminum beach wagon kit to create your very own beach or fishing wagon of your dreams! Simply choose the wagon deck component and deck style of your choice and you’re ready to hit the road!

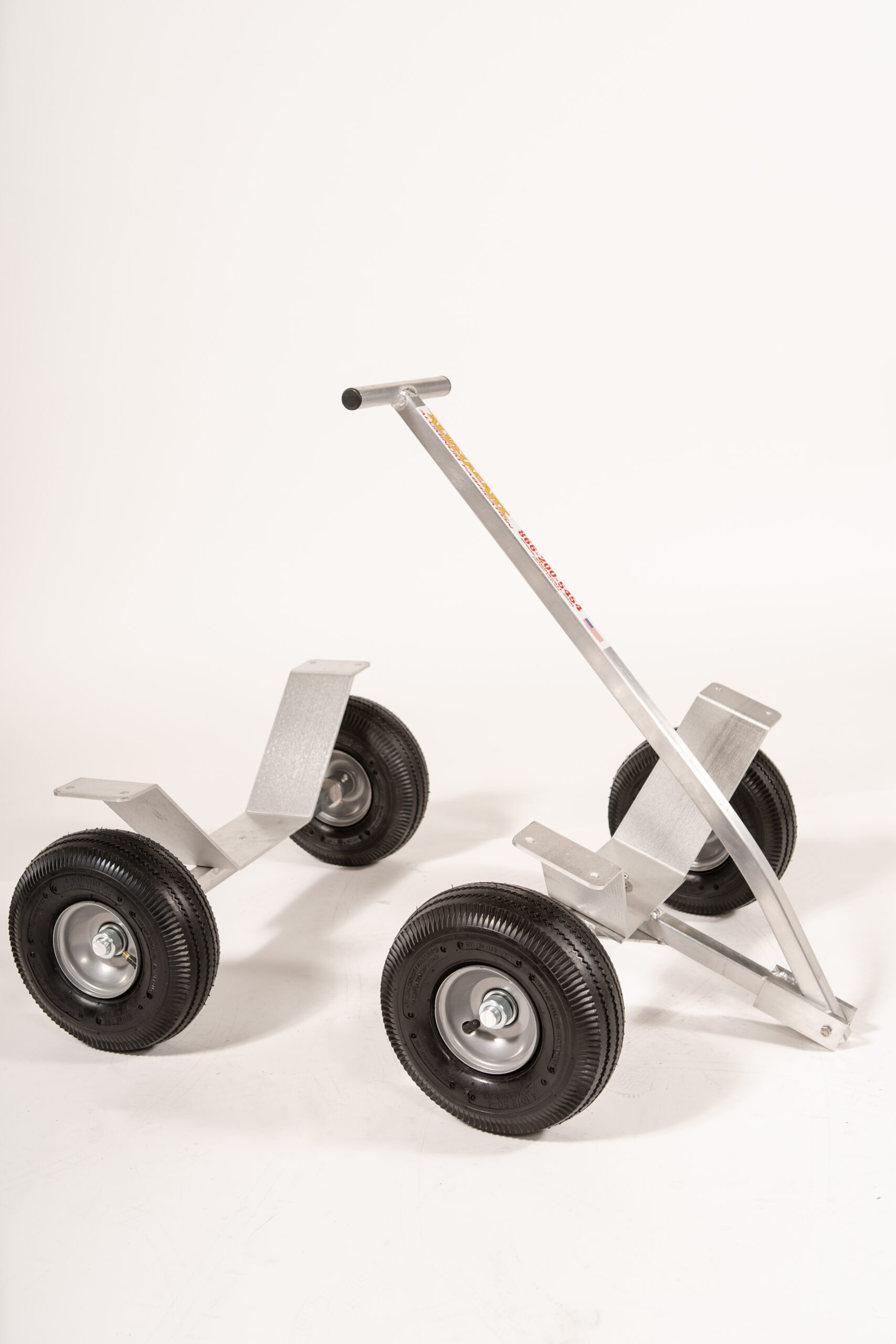

Create your own superior quality all-purpose aluminum wagon with this do-it-yourself aluminum wagon starter kit. This kit includes everything you need to build the wagon you’ve always wanted! Just chose your wagon bed/deck material and we’ll provide everything else! DIY Kit includes:
(2) Heavy Duty aluminum undercarriages with two pre-drilled 3/8″ holes on each end to bolt to the wagon bed of your choosing. Undercarriages are 26″ wide and fabricated from a 4” x 3/16” aluminum plate. The front undercarriage includes full wagon turning assembly with pre-assembled 3/4″ solid aluminum axles. The rear undercarriage comes with axle tubing welded directly to the undercarriage with a 3/4″ aluminum axle.
(4) 10″ Four-ply tubed pneumatic tires with grease fittings. 300 lb. load capacity per tire.
(1) Aluminum “T” pull handle. 36″ aluminum pull handle is made from 1” x 1/8″ commercial grade square aluminum tubing with a 1″ round aluminum grip handle. It also comes with a slight bend at the bottom so the handle rests leaning over your wagon bed versus laying on the ground waiting to be tripped over.
Stainless steel hardware included: (1) 1/4″ x 2″ hex head cap screw with washers and nylon insert lock nut for attaching the handle to the turning assembly. (4) 3/4″ flat washers for the tires. (4) 3/4″ lynch pins or collars with set screws for securing the tires onto the axles. (8) 3/8” x 1” button head cap screws with 3/8” washers and 3/8” nylon insert lock nuts for attaching the front and rear undercarriage to the wagon bed/deck of your choice.
This top-quality do-it-yourself wagon starter kit will help make your wagon dreams come true!
| Weight | 28 lbs |
|---|---|
| Tire Choice | Balloon Tires, Turf Tires |
